Beskrivelse

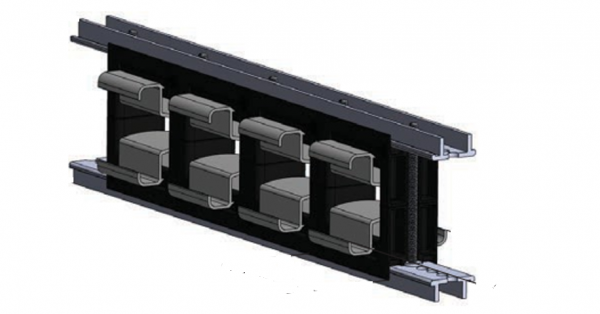

FleXbus Skinneholder 50 Horisontal, 3P+N
| Fleksibel størrelser | 220mm2 – 360 mm2 – 545 mm2 – 640 mm2 |
| El.nummer | 1702366 |
| Varenr. | 508610 |
| Fabrikat / Produsent | nVent Eriflex |
| EAN | 0784805122630 |
| Materiale | Glass Fiber Reinforced Polyamide |
| Working Temperature | –40 to 130°C |
| Flammability Rating | UL® 94V-0 IEC® 60695-2-12 (Glow Wire Test 960°C) |
| Dielectric Strength, IEC 61439.1 | 3,500 VAC @ 1 min |
| Insulation Voltage | 1,000 VAC; 1,500 VDC IEC |
| Halogen-Free Rating | IEC® 60754-1 |
| Low-Smoke Rating | ISO 5659-2 |
| Gjengestag/Hardware | Steel 8.8 Class |
| – Overflate | Elektrogalvanisert |
| Monteringsskinne – Materiale | Aluminium |

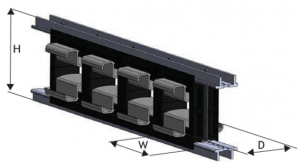

| H | 123.5 mm |
| W | 87.5 mm |
| D | 78.5 mm |
