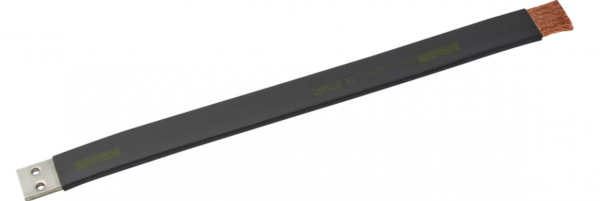

Flexbus Fleksibel 360mm2

Tilleggsinformasjon

Strømføringsevne (40 gr. omgivelse)

820 A

Nominell spenning

1000 VAC / 1500 VDC

Arbeidstemperaturområde

-50 gr. C – 115 gr. C

Dielektrisk styrke

20 kV/mm

Støtmotstandsgrad

IK09

Materiale, Ledende del

CCA (Copper Clad Aluminium) 90% Alu / 10% Kobber

Materiale Isolasjon

TPE Forsterket 3mm

Isolasjon Klasse

Berøringssikker IEC 61439.1

Halogenfri Rating

IEC 60751-1, IEC 62821-1

Low Smoke Rating

IEC 61034-2, ISO 5659-2

UV Rating

IEC 60364-2-52 Ch. 522-11: AN3

Bredde inkl. isolasjon

58 mm

Tykkelse inkl. isolasjon

16 mm

Enhetsvekt Fleksibel 360mm2

1.85 kg / meter

Hullstørrelse terminal

2x Ø11 mm

Flexible insulated copper-plated, aluminum flat braid
Better current/ampacity than cable due to skin effect
Much more flexible than cable
No bending radius to respect
Ready-to-use from one side with direct connection on busbar or circuit breaker palm
Only one conductor per phase from 400kVA (560 A) to 1600kVA (2250 A) and two conductors per phase for 2000kVA (2800 A) to 3150kVA (4435 A)

Wire Diameter	0.2mm
Insulation Thickness	2.5 – 3.5 mm
Dielectric Strength	20kV/mm
Nominal Voltage, IEC	1000V;1500V
Max Working Voltage, EN 50264-3-1	6000V
Connector Material	Copper
Conductor Material	Copper Clad Aluminum
Complies With	IEC® 60695-2-11 (Glow Wire Test 960 °C);IEC® 61439.1;IEC® 61439.1 Class II;IEC® 60364
Halogen Free Rating	UL® 2885;IEC® 60754-1;IEC® 62821-2
Low Smoke Rating	IEC® 61034-2;ISO 5659-2;UL® 2885
Mechanical Resistance Rating	IK09
Connector Finish	Tinned
UV Resistance Rating	UL® 2556;UL® 854
Flammability Rating	UL® 94V-0
Working Temperature	-50 to 115 °C
Insulation Elongation	500 % Min
